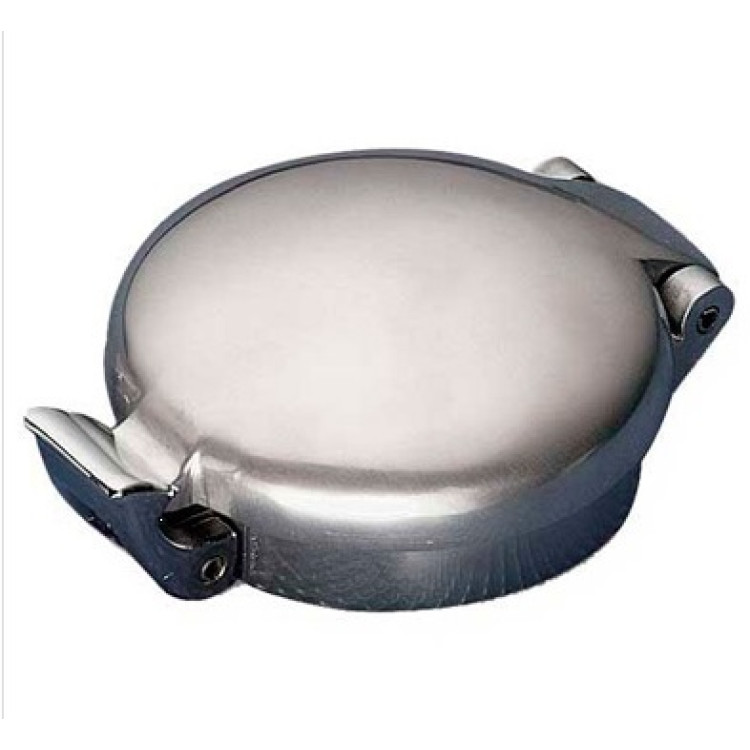

1 x SE520. A top quality, later Enots design  Aston, 3½ " BSP threaded  Fuel Filler Cap in polished aluminium, with the later snap shut catch. Comes as a vented cap to suit all XK etc. Listed for C-Type as 4" filler Cap: C6480

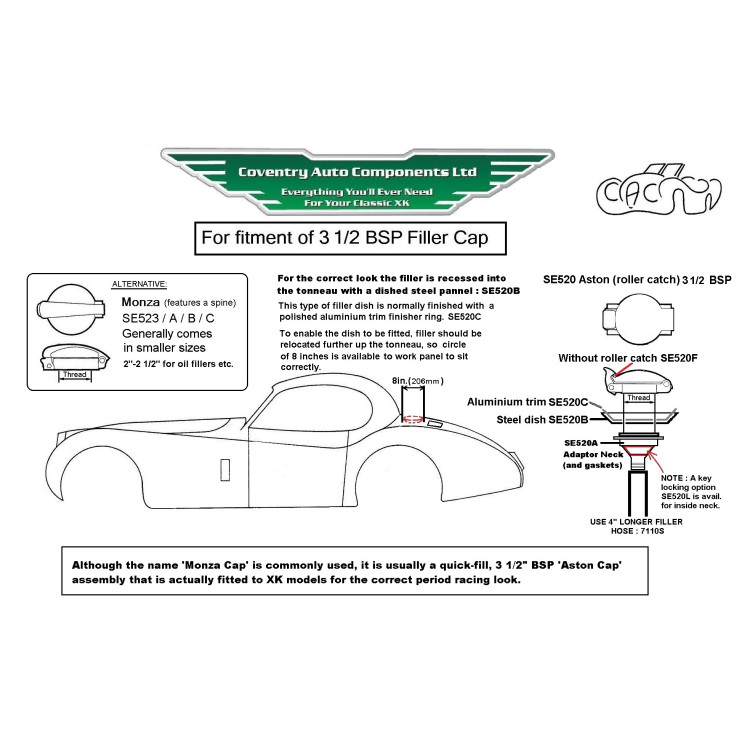

The correct period 'fitted' look is to fit it into an aerodynamic, recessed (dished) panel with aluminium finishing trim ring as shown in the diagram. This 3 1/2" 'quick-fill neck" cap features a funnel reducer neck that takes it down to 2" for the fuel tank filler neck.

This requires moving the filler location up the tonneau so a circle of 8 inch of steel is available for the filler dish to be worked into the panel nicely.

It can be fitted flush if the panel is flattened out (see optional fitting insert) to suit but will create wind noise etc and will not look ' factory fitted'!

Fit With: 1 x  SE520A 3½ BSP to 2" funnel Adaptor neck.

               1 x SE520L 3½ BSP to 2" funnel Adaptor neck with internal fuel lock.

               1 x 7110S  16" Long Filler Hose to standard XK fuel tank.
