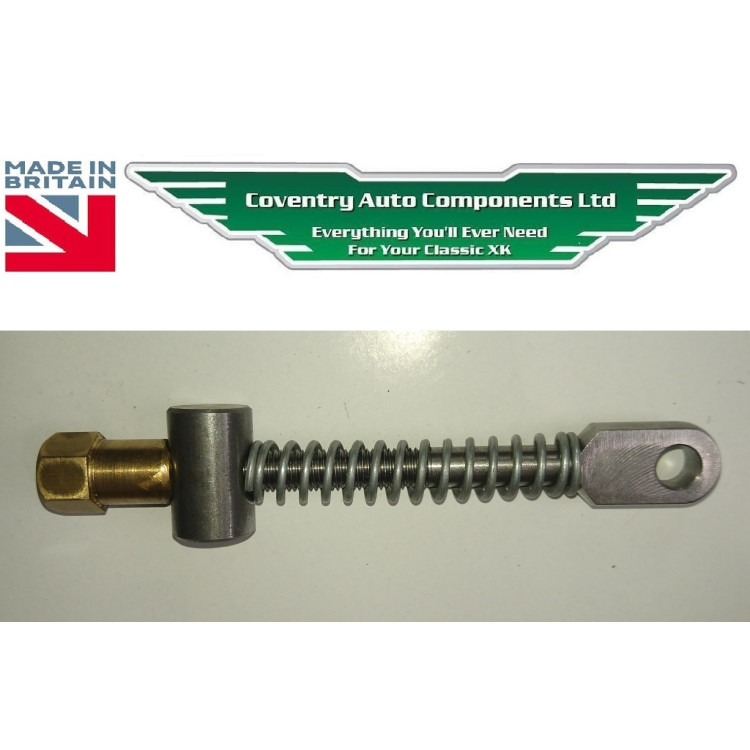

3261 x 1. Our own complete adjuster assembly kit which is beautifully made for XK120 & XK140 manual Clutch Pedal lever adjustment (3594, 3595, 3263) with spring, trunnion , brass barrel-nut and steel locknut. The long shaft should be drilled and pinned to be correct. We supply these to the best Jaguar trade outlets across the World so carry good stocks of these. Original Ref. Number C2423, C2482, C5180, C4165

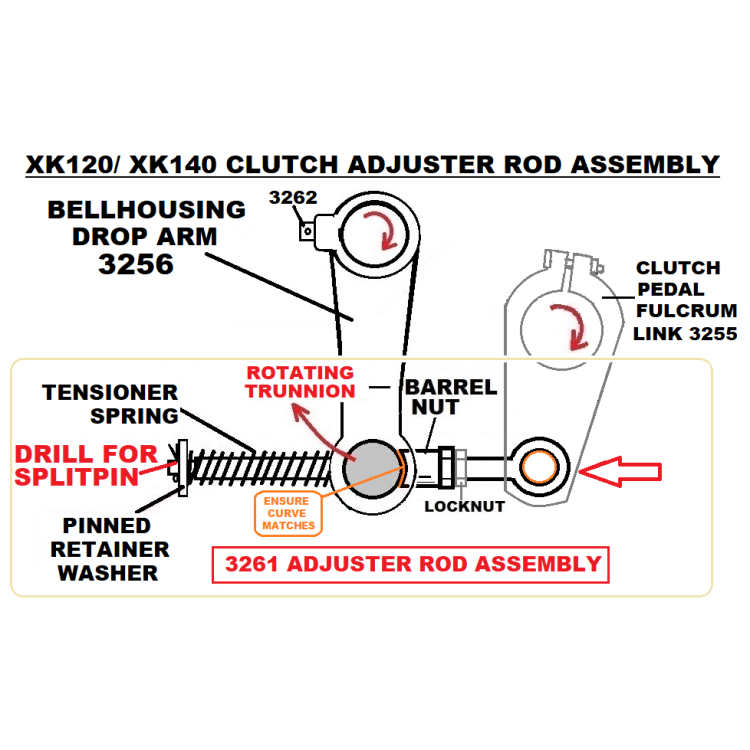

See diagram for correct setting up assembly.
NOTE : You may see this rod / assembly sold incorrectly as the similar HANDBRAKE ADJUSTER, but this rod features a smaller diameter eye and has no retainer collar.
For the correct handbrake adjuster assembly SEE : 3593A
3261. XK120/140 CLUTCH Pedal Adjuster Rod Kit . C2423, C2482, C5180, C4165
- Product Code: 3261
- Availability: In Stock
-
£66.00
+ £4.95 UK Shipping charges:
- Ex Tax: £55.00
