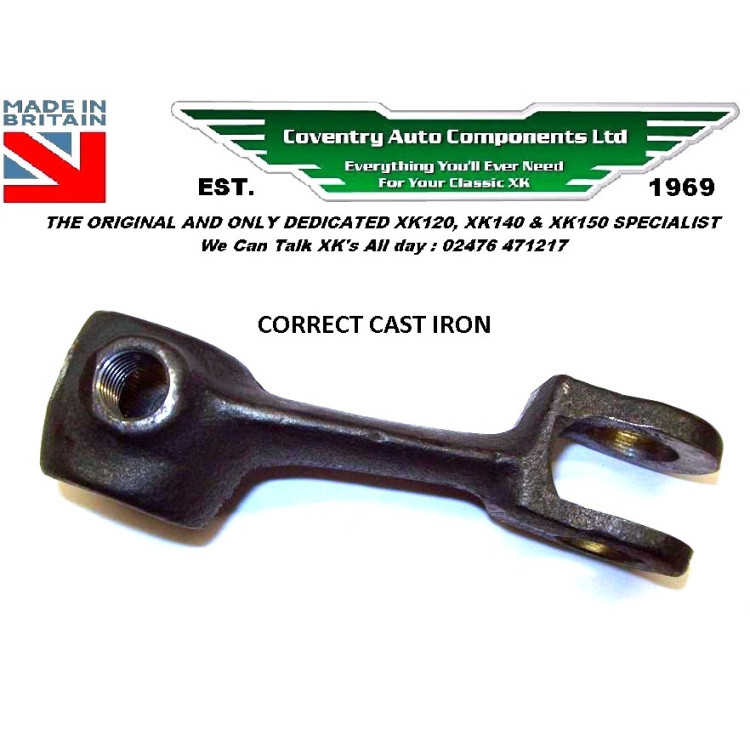

3256 x 1. This Clutch Lever Arm will fit all XK120, but technically this is the Later XK120 spec. (courser thread in boss for pin) & all XK140s. This Lever arm locates onto the X-shaft that passes through the bellhousing, to operate the fork for the manual, lever operated clutches. Hole centres are offset, but are APPROX 80mm centres for this, longer arm. On XK120/140 the side mount position matches the operating pedal's LH or RH location (unlike the XK150 which always mounts RH side and hydraulically re-routes for LHD.)

Our own exclusive tooled castings in a strong Spheroidal Graphite (malleable) CAST IRON, so it will not break in use.

Fit with 3248 shaft for original style taper pin or use 3249 with the later, XK150 superior design (parallel pin spec.) Original ref. C2483

NOTE : Use 3508 Double Coil Washer to span the gap to the bellhousing.

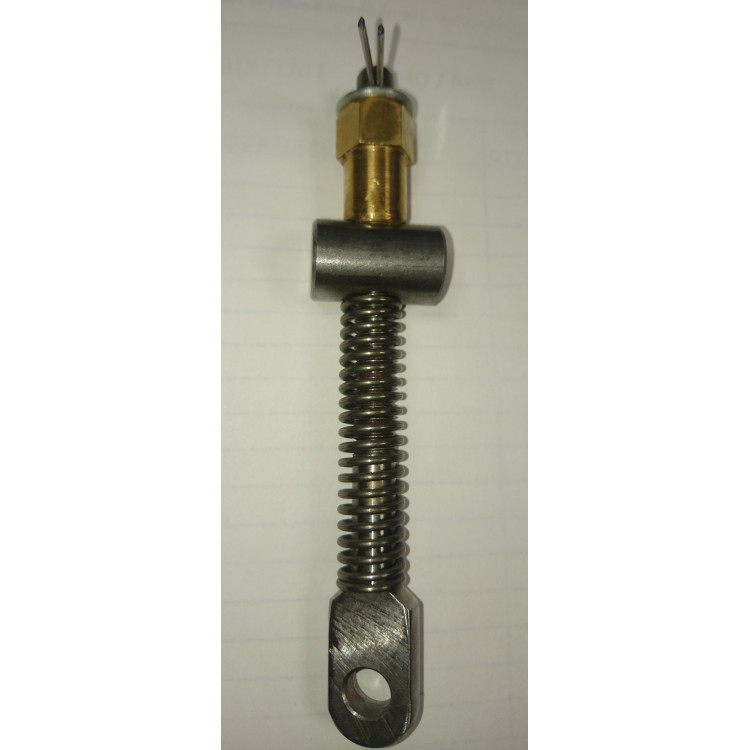

For assembly with the full adjuster rod shown SEE : 3261
