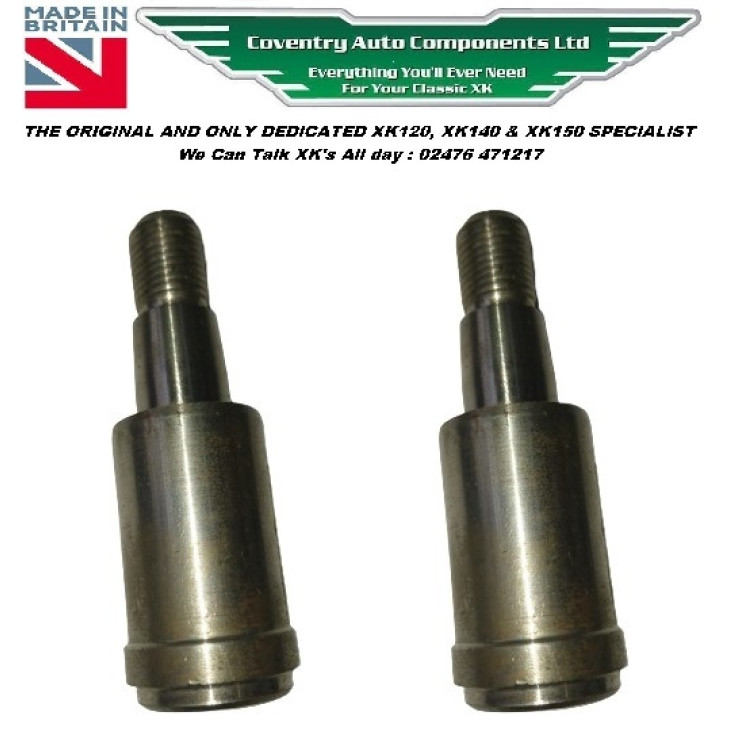

4248 x 2. This is a Listing for a PAIR ( x 2) of Oversize Steering Tie Rod Repair Bushes for XK120.

These are sleeved repair units for the joints that Jaguar in the 1950's refered to as the "Track Rod End" but we better refer to as an inner knuckle at end of steering centre cross- tube. The whole joint is not available new and can be very difficult to obtain as a used part (but please do ask us). These are an oversize / repair bushes for arms aready reamed out or with damaged mount holes, and are made to the Mk2 larger diameter hole size of 1.002"(25.4mm). Polyurethane is used in preference to the original rubber for inproved performance. Original Jaguar reference number is C3494/1

FITTING ADVICE :
The original pin and rubber is completely removed from the knuckle joint and then the complete sleeve casing is pressed into the hole left in the knuckle, insert until to the bottom rim beds down. Take care not to crush the lower rim whilst fitting.

For XK120 standard size repair bushes (standard size 0.910" or 23.10mm)  SEE : 4247
