1 x 4225C. This is the rare and easily lost " floating" column part that inverts inside the Later steering nut to lock the spline against the upper column.

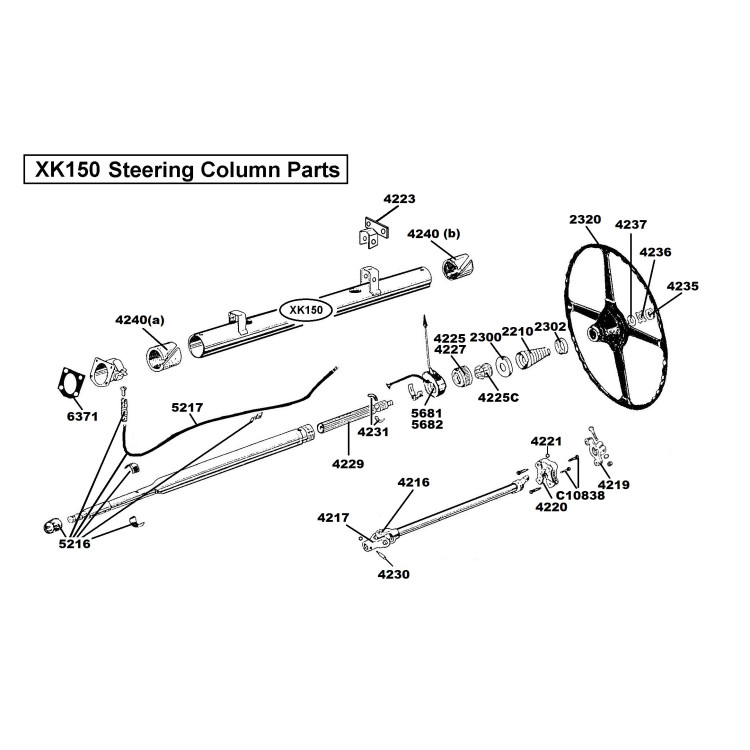

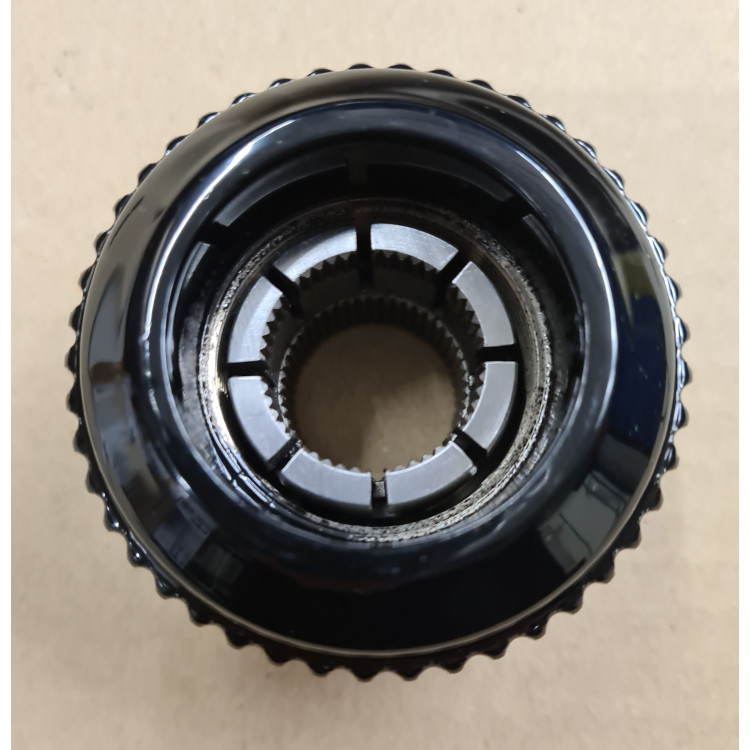

For some reason Jaguar misleadingly named this in the XK150 Parts Book as a 'Split Collet' when it is actually NOT a split 2-piece assembly like the steering wheel collets behind the boss, it is a complete one-piece, 8-finger collar that sits the opposite way around to the earlier column collet fingers, inserted into the Later design Hand Locking Nut ( SEE : 4225 ) as shown in the last picture! Original Ref. C13638.
4225C. Late XK150 Steering Column (split) Collet Inside Nut . C13638
- Product Code: 4225C
- Availability: In Stock
-
£96.00
+ £5.95 UK Shipping charges:
- Ex Tax: £80.00
