9065. Supplied as a USB data stick due to the immense size ( and weight if printed ) of the 322 data sheets included. It is a large collection of period, restored factory A3 Technical Build sheet data that allows a massive insight into the construction of these special vehicles.

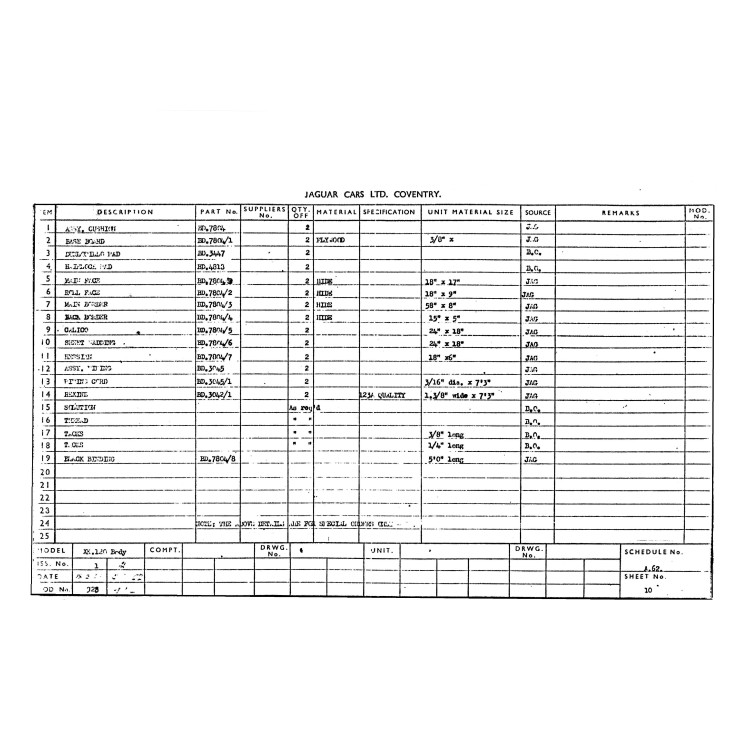

I have spent hundreds of hours scanning and (sympathetically) digitally restoring them from photocopies of original Jaguar technical layout sheets. Presented as they were first written up, on build schedule sheets by the techicians / draughtsmen at the factory. Many are hand written, others are typewritten and some include hand written additional notes or deletions.  They have been grouped and indexed as well as the original data allowed. There are a few missing pages and some unreadable text due to the nature of how this information was recopied over time, but there is probably nothing else like it available anywhere. A well known car was reconstructed from this info before it came into our care.

Sadly we do not have any of the actual schematic drawings to match, so these are just raw technical text, as shown.

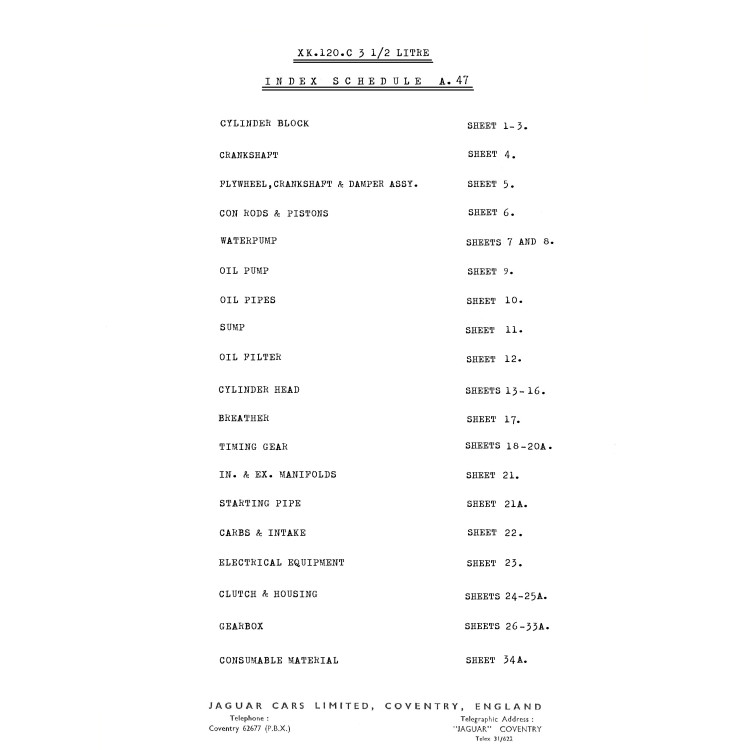

Includes Build Schedule Sections for :

A47 XK120C Cylinder Block (49 sheets)

A48 XK120C Chassis (59 sheets)

A52 XK120C Electrical Equipment(15 sheets)

A54 XK120C Body Complete Assembly (35 sheets)

A62 XK120C Special Equipment (14 sheets)

A79 D-Type Engine (49 sheets)

A89 D-Type Body (88 sheets)

A90 D-Type Electrical Equipment (13 sheets)

NOTE : This data can be even further enhanced if you have the skill to do so.

If you are attempting to build a C or D-type replica, you will soon appreciate how helpful this data is as even 'specialists' are often lacking in useful information. We would direct you to our other unique book of factory engineering data we have compiled, SEE : 9032
