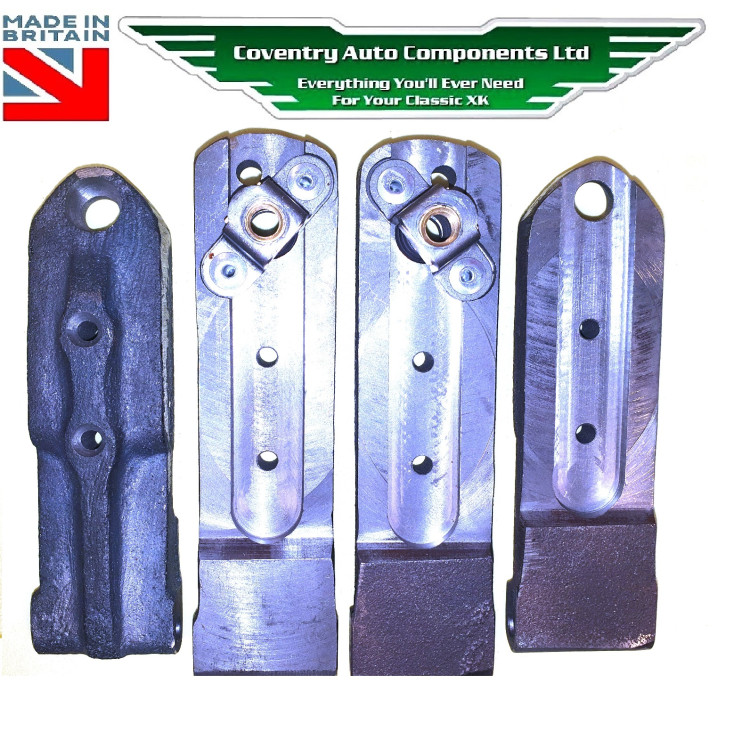

3652 x 1 set of 4 pcs. Our superb new, Jaguar XK150 Handbrake Caliper Fingers Set or Pad Carriers. These are not made of the weaker aluminium, so will not snap in harsh use, they are SG Steel castings. A quality XK150 Handbrake Caliper Finger Set (for use with our 3490, wedge shaped, bifurcated rivet, handbrake pad set).

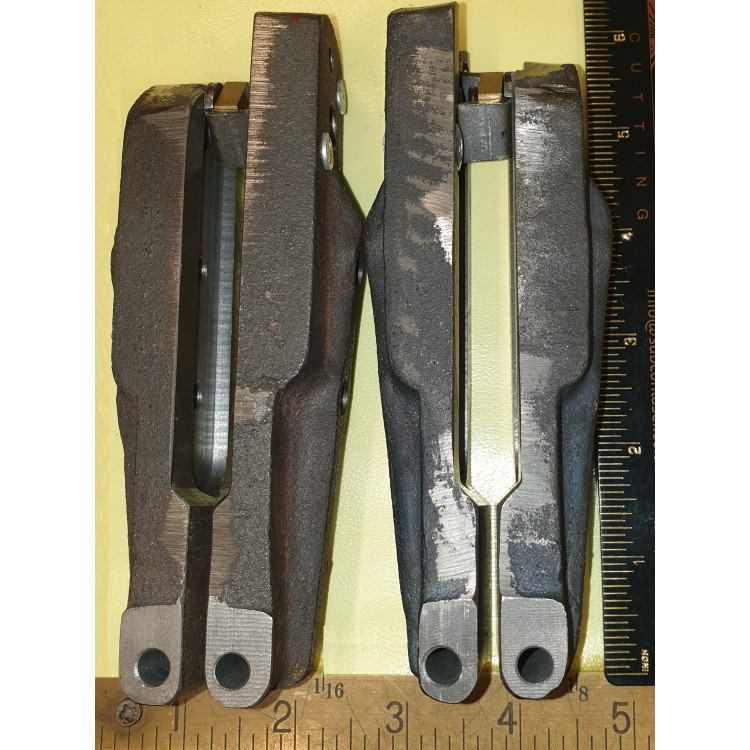

These are already Heavy duty cast iron castings, but we have reinforced the back spine pivot area upper area to enable spot drilling ( 3mm deep) for later spec. brass retraction plates if required, so these can replace all XK150 model handbrake  Fingers. As you can see from the side view, each finger also has enough extra material at the pivot ends to shorten and re-drill to be useful to adapt to make some of the shorter Jaguar etc. handbrake finger variants we have seen over the years here too.

Original Early XK150 Number 7740 & 7741/  7743 / 7744  Late XK150 : 8304/ 8305 / 8306 / 8307

To Fit new wedge pads see : 3490

If actuation levers are missing please see complete assembly kit : 3662

If you need late XK150 caliper hanger castings too see : 3665

3652. XK150 Disc Brake REar Caliper Handbrake Fingers Set **In Cast S.G. Iron** Pad Carrier 7740. 7744 / 8304 - 8307

  • Product Code: 3652
  • Availability: In Stock
  • £318.00

  • + £12.95 UK Shipping charges:
  • Ex Tax: £265.00
