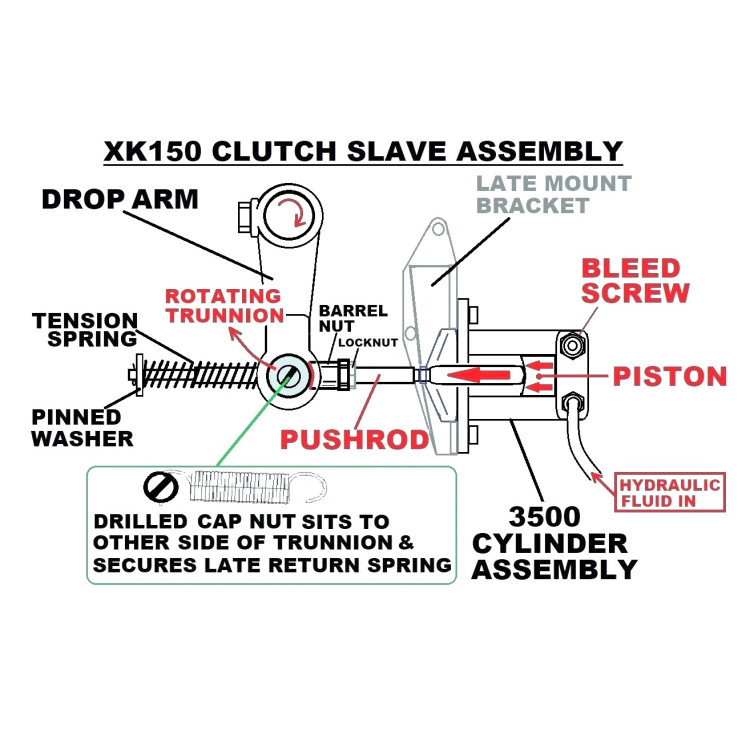

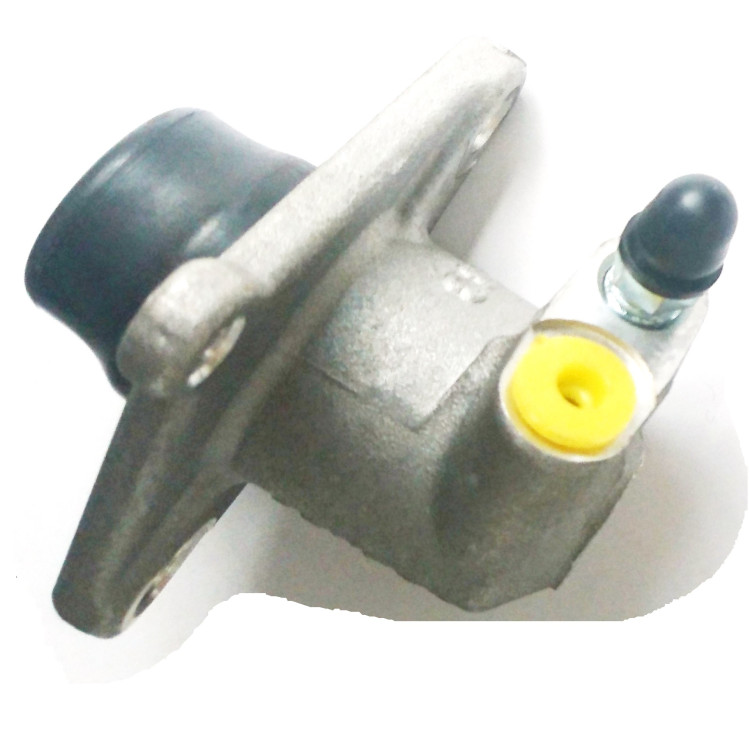

1 x 3500. New Clutch Slave Cylinder for all Jaguar XK150, with gaiter, as shown.
NO PUSH ROD is supplied with this piston, as this part is a complex, multi-piece, assembly.
NOTE: Ensure piston is fully pushed back into body before fitting to avoid bleed / operation problems. Orig. Reference No. : C5165.
IMPORTANT : Ensure you fit the stronger, Late spec. mount bracket, to prevent flex. SEE : 3499
For complete slave adjuster which includes : push rod, trunnion & spring. Click here : 3502
We sell all associated parts and a range of the upgraded spec. parts individually, if needed.

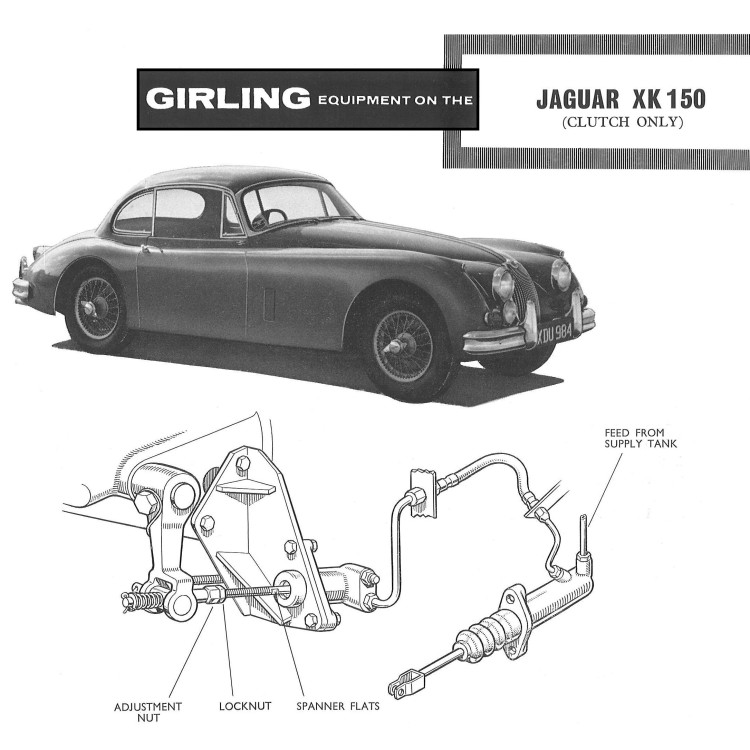

SEE OUR VIDEO ABOUT THIS PRODUCT HERE : XK150 CLUTCH VIDEO
3500. Jaguar XK150 Clutch Slave Cylinder (onto bellhousing bracket) NEW. C5165
- Product Code: 3500
- Availability: In Stock
-
£71.94
+ £4.95 UK Shipping charges:
- Ex Tax: £59.95
