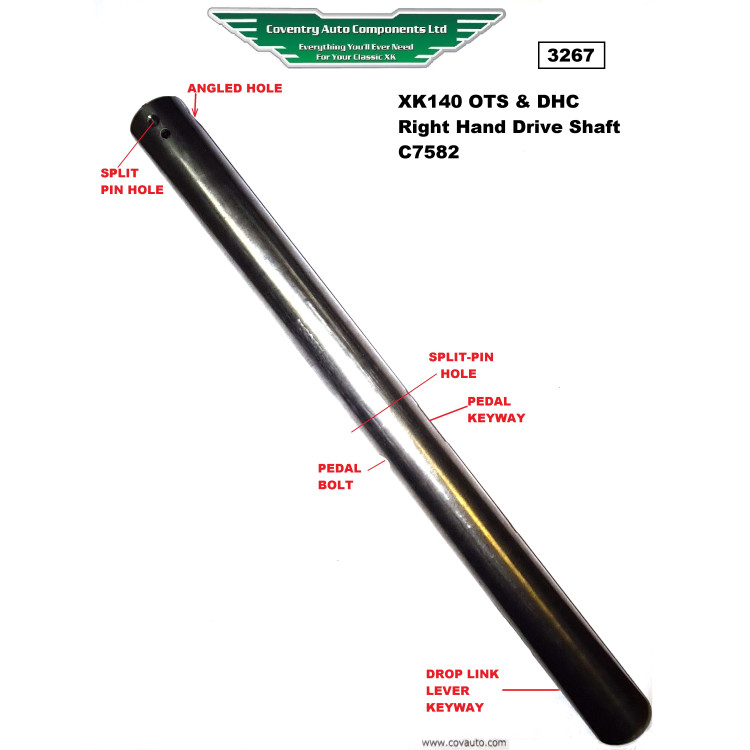

3267 x 1. XK140 RHD Shaft, Clutch Pedal support shaft for Drop head coupe (DHC) and Roadster (OTS) versions, Right Hand Drive vehicles only. Original Ref. C7582

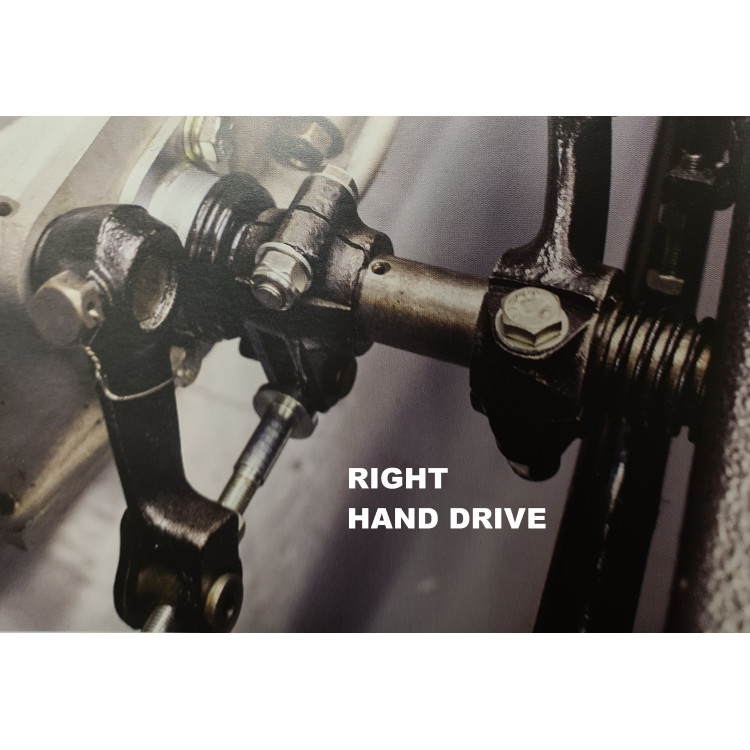

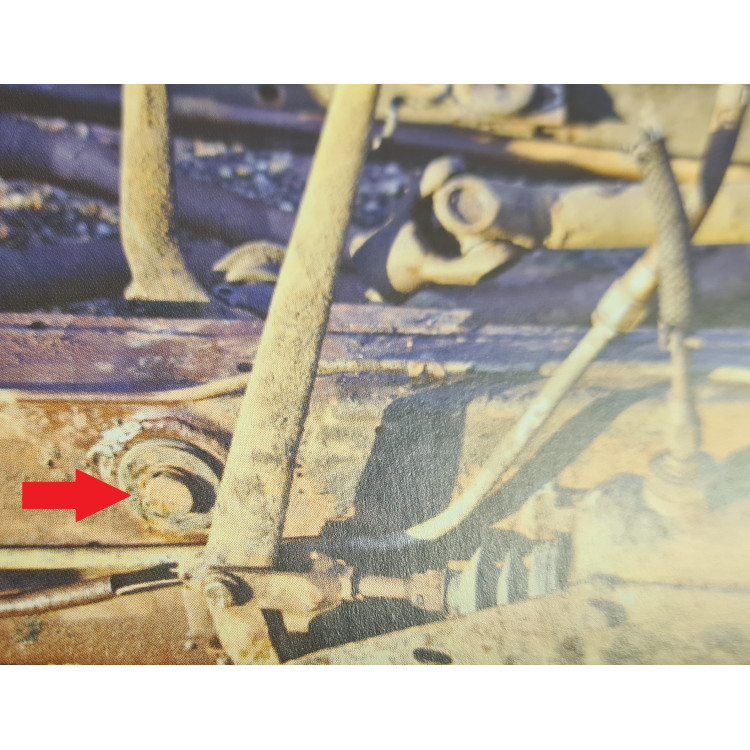

If converting from Left to RIGHT HAND DRIVE, take note the pedal and drop link both fit in a different position,  between the gearbox and chassis, only pinned on the outside chassis with a large washer ( 3245 ) and L104/11U Split-pin. ( See example picture)

NOTE : This shaft does NOT fit the unique Fixed Head Coupe RHD pedal setup, SEE : 3257.

For the rare clutch pedal, see our new product : 3239

3267. XK140 Right Hand Drive, Clutch Pedal Support Shaft DHC Drop Head Coupe & OTS Roadster. RHD. C7582

  • Product Code: 3267
  • Availability: In Stock
  • £122.68

  • + £7.95 UK Shipping charges:
  • Ex Tax: £102.23
